PATRIK WINDSURFING BOARDS -

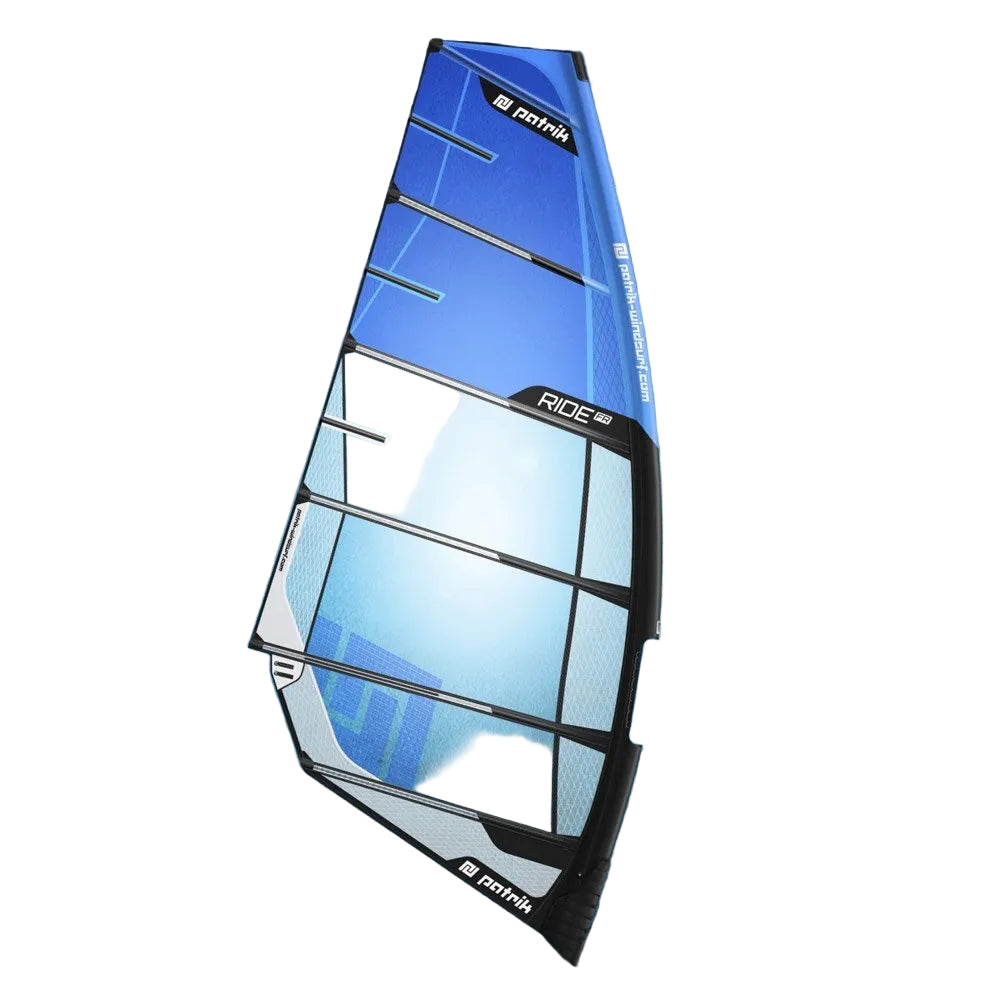

PATRIK RIDE FR 2025 -
EASY, FUN AND FAST FREERIDE SAIL!
OVERVIEW
Easy, fun, and fast no-cam freeride sail! Ease of use but in a "PATRIK" way. This means that we don't cut any corner in the construction materials selected for our Freeride range. It's not a cheap material sail at all!
The luff panel is a 2.5 MIL x/scrim-ply which still inflates gently but is more robust and higher load resistant compared to the dacron.
The sail bottom part is made of 5 MIL x-ply material to give good protection against impacts. The main window is a solid 5 MIL monofilm which provides best combo between visibility, impact resistance and weight. All these things should still be combined with a good shape stability, which is a key factor in this area (main power of the sail).
SPECS
|
Luff (+- 1 cm) |
Boom (+- 1 cm) |
Best mast | Compatible mast | Vario top | |
| 4.4 | 403 | 151 | RDM 370 – IMCS 17 | RDM 400 – IMCS 19 | NO |
| 5.0 | 421 | 159 | RDM 400 – IMCS 19 | / | NO |
| 5.6 | 439 | 169 | RDM 430 – IMCS 21 | RDM 400 – IMCS 19 | NO |
| 6.2 | 455 | 181 | RDM 430 – IMCS 21 | / | NO |
| 6.8 | 471 | 189 | RDM 460 – IMCS 26 | SDM 440 – IMCS 23 | NO |
| 7.5 | 493 | 201 | RDM 460 – IMCS 26 | SDM 460 – IMCS 25 | NO |
| 8.2 | 511 | 209 | RDM 490 – IMCS 30 | SDM 480 – IMCS 29 | NO |
The RideFR is an easy freeride maschine. We have put our optical indicators for the right amount of tension on the batten pockets. So just make sure you reach the suggested minimum downhaul at all times which the sail top to release pressure in the gusts. This will give you a smooth ride in choppy conditions and even more control and top speed.

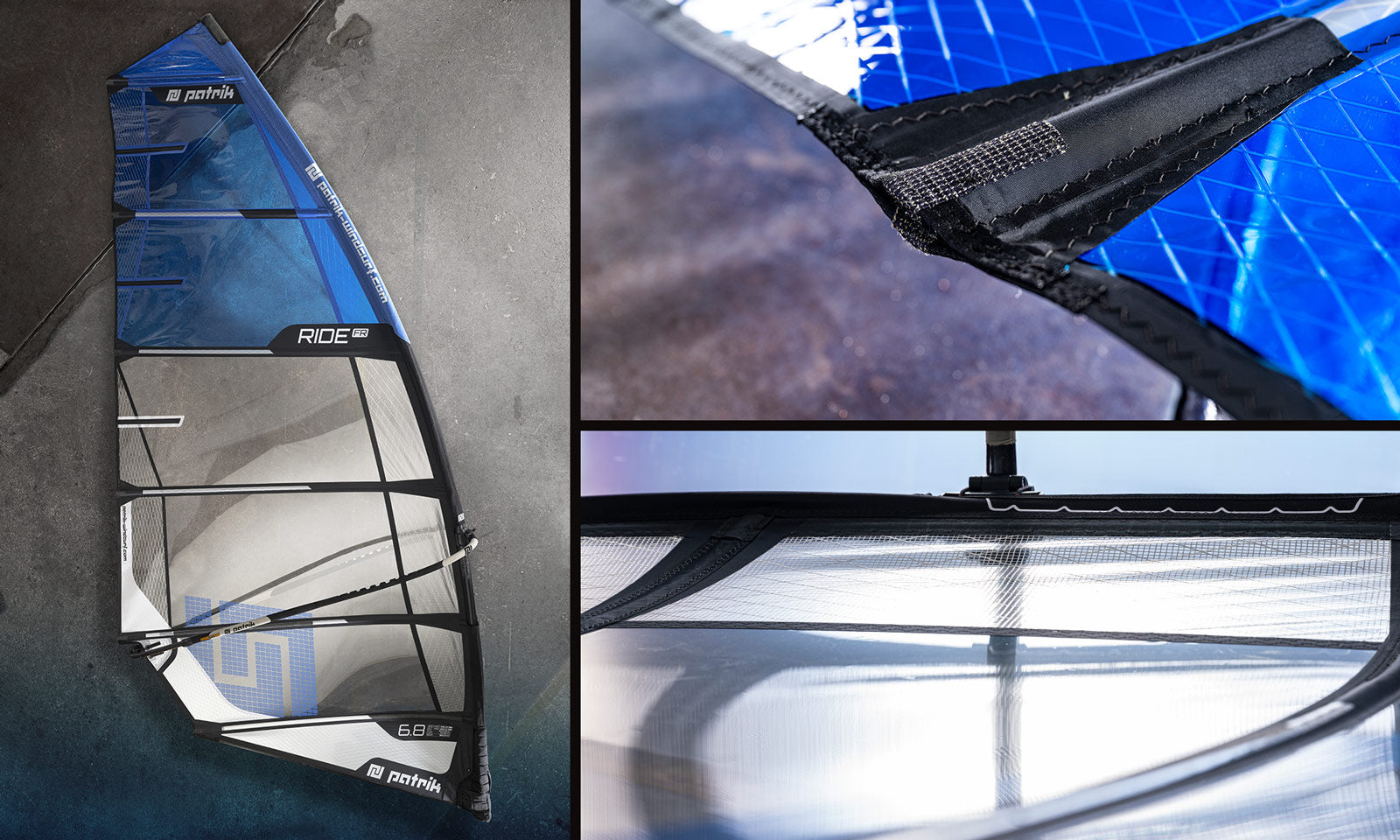

CONSTRUCTION
Ease of use but in a "PATRIK" way. This means that we don't cut any corner in the construction materials selected for our Freeride range. It's not a cheap material sail at all!
The luff panel is a 2.5 MIL x/scrim-ply which still inflates gently but is more robust and higher load resistant compared to the dacron.
The sail bottom part is made of 5 MIL x-ply material to give good protection against impacts without compromising the weight too much. The main window is a solid and thick 5 MIL monofilm which provides best combo between visibility, impact resistance and weight. All these things should still be combined with a good shape stability, which is a key factor in this area (main power of the sail). For the top part of the sail, we chose a 4 MIL blue tinted monofilm, which is lighter and adds UV-resistance where you don't need to see through.
As a further bonus, we chose a clear 5 MIL x-ply and blue 5 MIL x-ply along leech and top panel, to add a touch of wear resistance to the area which is always stressed while rigging and rolling the sail.
